Welcome to the streaming guide for Park. This guide is very long so please try using Ctrl+F to type in key words you are looking for or in the Gallery. This is also only for Streamlabs OBS, there are many other guides out there on the web for different software, just google it. Note that this guide will be updated as needed and is currently managed by Shilo Acebedo-Moore. Feel free to provide feedback for the article and let me know if something needs to be changed.



-----Installing StreamLabs-----

-----Logging In-----





-----Going Live-----

-----Tips and Advanced-----

----- Quick Start Checklist-----



Recommended to have a intel i7 6thgen or higher. Equivalent Ryzen 7 1700 or higher

Minimum: I don't have specific specs for minimum so in my opinion as long as you can run the game at 70+ fps and try streaming at a minimum 720p 30 fps.

Internet: for 4000 bit or higher, internet speed must be above 100mbps download and upload.

Installing Streamlabs


Coming soon.

Logging in


Start Streamlabs OBS. If you are not signed in, you will be greeted with this:

Sign into the desire platform you will be using. If you are streaming to youtube, log into your Youtube account. Same for Twitch. However, your settings for different platforms wont transfer in between and you should export and import your overlays to keep the same scenes. Also note, Settings are locally stored and won't appear on different computers.

For this example we will sign into youtube since park goes through two different sign ins

When asked if you would like Streamlabs to access your Youtube settings and stream key, click "OK"

In this example, after signing in, it lets me know my scenes are being imported from the cloud from this account so just proceed:



We are now at the interface which is very simplistic, I will go through each area and how they function.

Dashboard, Themes, Editor and Live

In the top left red circled area are the 4 different views within StreamLabs.

Dashboard: Allows you to manage core parts of your stream from a backend perspective by installing new custom overlays, widgets, Alerts, customize sounds, ect.

Themes: Where you can find custom themes for your Stream, go to streamlabs.com and sign in to take a look but don't recommend it.

Editor: Change scenes which your viewers will see whatever is selected, allows you to also add new sources and change audio settings. THis will have its own section explaining the areas of the Editor.

Live: Shows new alerts such as new subscribers, donations, sales in the merch store, ect. This is helpful for calling out new subscribers which will become a big deal on the Twitch platform and briefly on the Youtube platform.

As you can see, Editor and Live is where you will spend most of your time.



Here we will list the current options I have set for the Parkade Battlegrounds as we know it works and anyone in the Park network can view the stream. We can set the quality higher but this can be limiting for some users who don't have the internet speed to watch at the highest quality.

If by the time of this writing we become Twitch Partnered, then users will have options to lower down the quality of the stream on their own to avoid buffering issues.

General: Not much to touch here unless you have bizarre issues in which you can clear the Cache and Restart which can reset a lot of settings, do it if you can't figure anything out and need to start over.


Next is Stream: Here is where we can set the server, the service we are using (ie, Twitch, Youtube) as well as being able to change the Stream Key.

Stream key is crucial in this area, if the key doesn't match the service such as Youtube in this instance, then hitting Go live will start the stream but the actual stream isn't going anywhere. Meaning if you go to Youtube to your stream nothing is happening. Double check your stream key every time before you start your stream, and reset it if you accidentally reveal it even for a second because people can then hijack your stream by simply copying the same key. So keep it confidential.

Output: Handles the Bitrate (amount of data is sent to your stream, the higher, the better quality but that means the more your viewers need to download and the more you need to upload so you need to keep a balance. For reference use Twitch's guide and do yourt speedtests to figure out your network speed: https://stream.twitch.tv/encoding/

Our settings: For 1080p 60fps

Audio: Alright, Audio at the simple point. You do not need to touch besides double checking what your default audio device is. For Windows 10 do the following:

1: Right click speaker in bottom right corner of your desktop

2: Click "Sounds"

3: Click the tab that says "Recording Devices"

4: Select the device you want to use for your microphone. In our case it should be Blue Yeti USB.

5: Click "Make Default"

6: Go to Playback Devices, this list your speakers from where sound should be coming from. For our computers its generally Logitech Headset but could be your computer speakers built into a laptop (keep that volume low for your viewers to not here it through the mic.)

After that, do not toucht he Audio options in Streamlabs

Video: This settings is all about what resolution you are outputting from your screen to the stream. If your native monitor is a resolution of 1920x1080, then you output at that resolution or lower. Lower you set it, the more blurry or pixelated it will look. For Park's current powerhouse gaming machines, use the following settings, if users are having issues loading the stream or you need more performance, drop the resolution to 1280x720.

You must also keep in mind FPS. FPS is Frame Per Second, and thats how smooth the stream looks. 30 is best performance and you should use this if your computer isn't powerful enough to run 60 (How do you know? Just try it and see if it looks horrible and you experience frame drops or stuttering or buffering issues which could be related to your internet connection.

Our settings:

Advanced: If you don't know what it does, don't touch it, google it first and get the understanding of what it is and what it does before touching. In this area, for our purposes, you will only touch Streaming Delay. League of Legends tournaments require a 5 minute delay, in game is 3 minutes and we need to delay stream for 2 minutes so type in 120 seconds:

There is no other options I can think of on needing to mess with. I may add more later.



Alright so in Editor mode, you need to be selecting the correct scene you want your viewers to see. I won't go into detail on creating new scenes and I will dive a little into Sources.

Scenes: In Scenes, we have some basic 4 scenes to change in between depending on how you want to orchestrate the stream. If you are starting soon, click Stream Starting and Go Live. I recommend muting your microphone for this purpose and playing some music (royalty free/copyright free).

Once ready, click "In Game" to show your viewers the game. Read the Quick Start Guide for specifics because its a touchy subject when streaming League tournaments.

Sources: In Sources, this shows you items that viewers will see. From top to bottom is the order of what is in front in the Scene. If we look at In-Game Scene's sources, we got two of them: Game Capture and LoL Client (These are renameable for easier use)

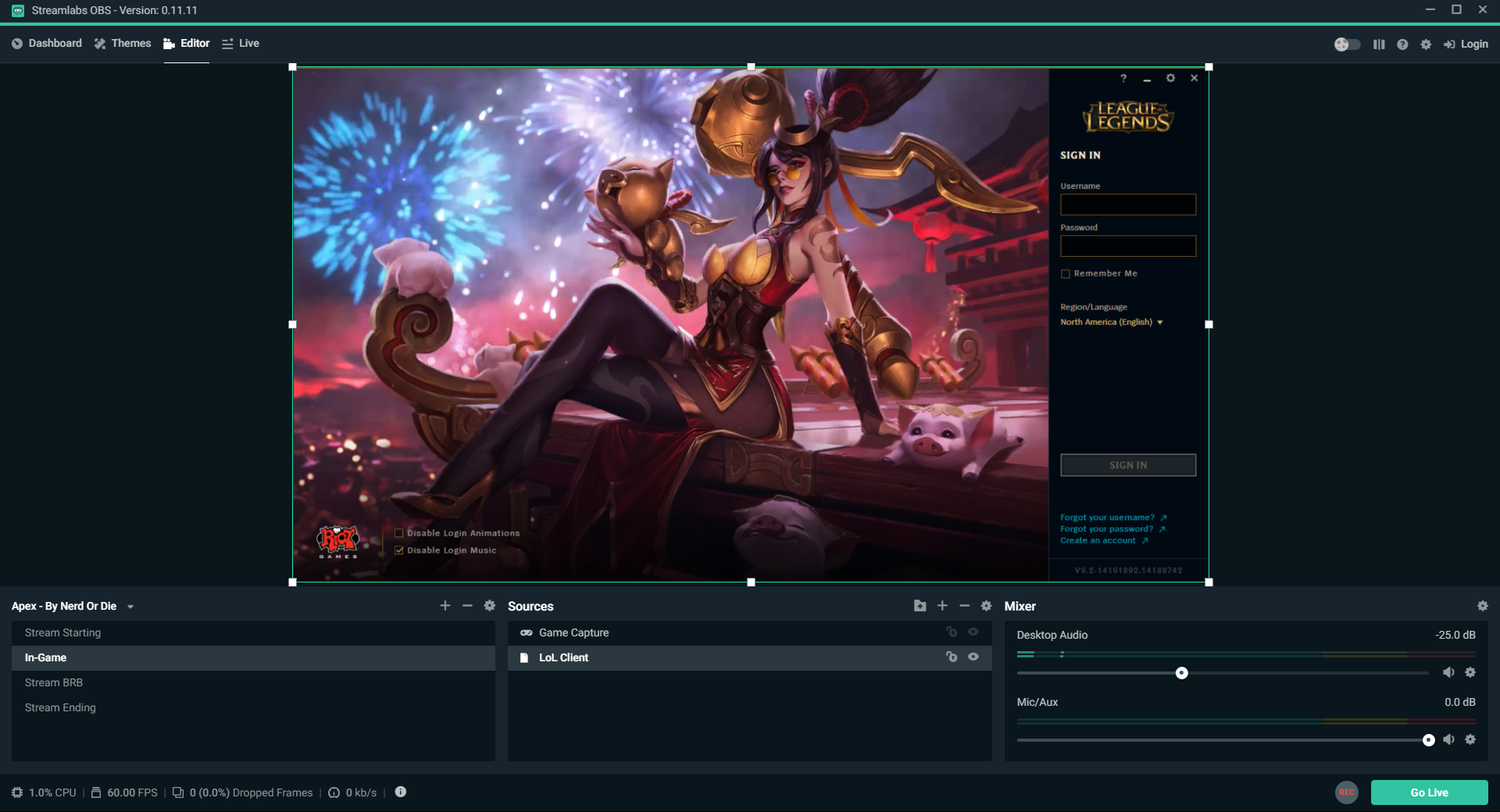

Game Capture is self explanatory Source, it captures your game applications. It is at the top of the order because if the LoL Client is no longer the focus because game started, the Full Screen application of Game Capture will show League of Legends, see this example of the Client and Full Game of League of Legends

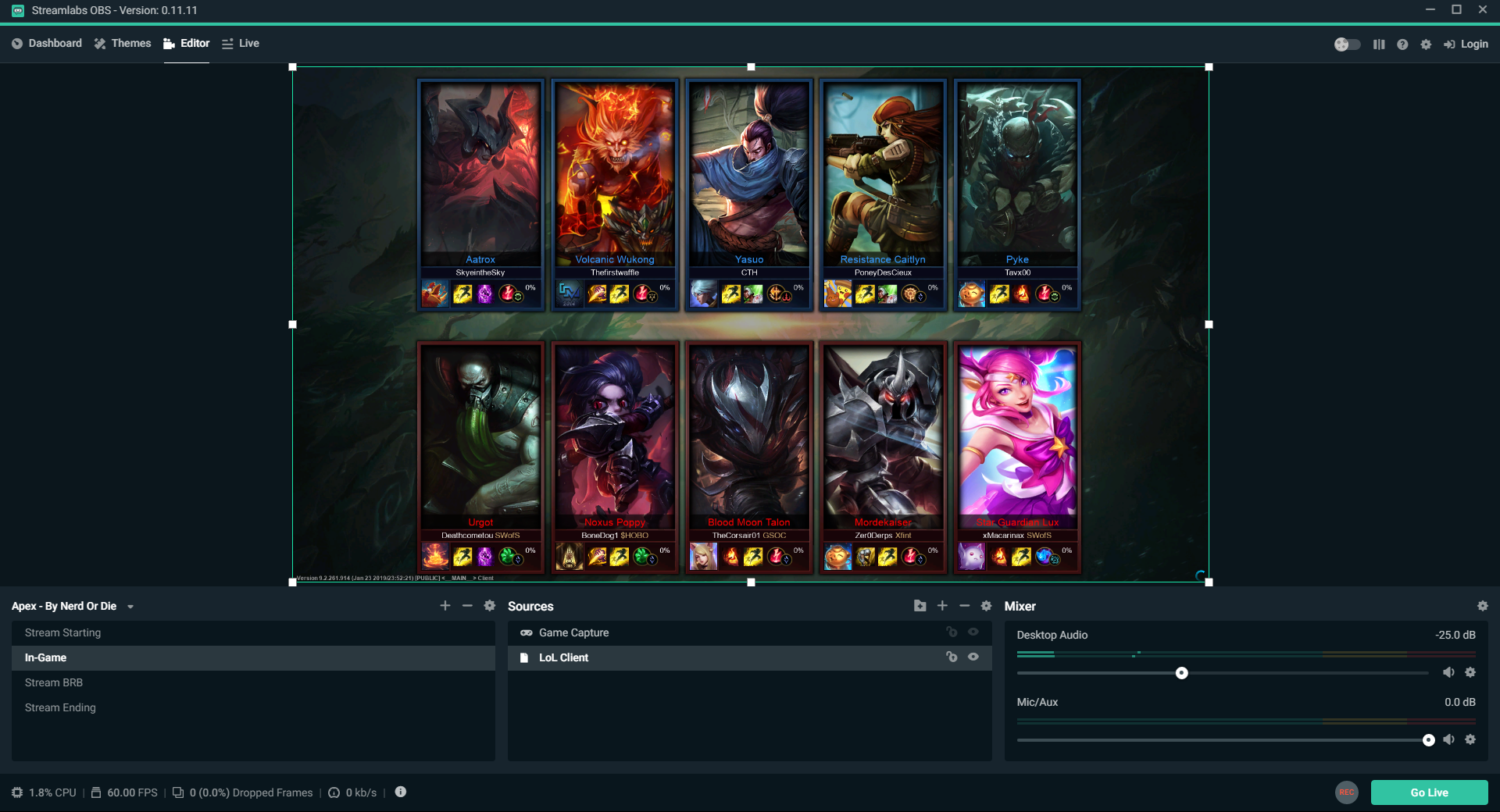

Finally, when the game has actually started which will automatically switch to Game Capture because full screen applicaitona nd its a full game: (Super hard to explain this btw)

How do you know if the game is actually launched? Well your screen by this point should be taken over by a the game or you will see the darker blue League symbol at the bottom of your desktop:

To add a new source, click the + symbol and choose the desired source, i won't go into detail as for one they are self explanatory and I am very tired to write more than what most of you won't read anyways. If its requested enough sure.



coming soon, for Youtube you need to be sure your Live Stream Dashboard shows the Publicity setting is set to Public other wise no one will see it.

Going Live


Going Live is fairly easy, if all the settings above is correrct including Stream key. Then Click "Go Live", you should see the results and the stream start after the 2 minute delay. (You will see a countdown as well of 2 minutes in our instance)

Tips and Advanced


Maybe be soon, there is a lot of best practices, how to talk to your audience, ill look back into this later.

Quick Start Checklist


If all the settings above are currently set, go through this checklist and I am positive you wills tart the stream successfully.

Step 1: Log into your streaming platform (Youtube, or Twitch, whichever you will use).  For Youtube you can just got straight here: https://www.youtube.com/live_dashboard

Double check name of stream to that what you want, type in description of anything you wish to promote or link Park's website? up to you.

Step 2: Locate your Stream Key. For Youtube its at : Live Stream Dashboard

Step 3: Open StreamLabs OBS and Log In to which platform you will use.

Step 4: Check if Stream Key in StreamLabs OBS is same as one on website's streaming platform. If it doesn't match, copy from website and paste into StreamLabs OBS so they can talk to each other.

Step 5: Check when match will start and if there was changes to time. Mute your Blue Yeti microphone by click the red light, when it blinks that means its muted. Click Stream Starting Scene in StreamLabs OBS. Should look like this:

Step 6: Once your mic is muted, and scene Stream Starting is done, Click "Go Live". A countdown will begin, use that time to open Youtube Live Streaming Dashboard and get ready to click Go Live once the countdown in OBS is done. Remember what shows on your Streamlabs OBS will show 2 minutes later on the Live Stream

Step 7: Check Status of stream, is it live? Type in chat to say hello to be sure its working. Remember there is a delay of 2 minutes.

Step 8: Join lobby for tournament when available, leave scene at Stream Starting and type in chat that they will begin soon. You can also unmute microphone at this point to talk to your audience and announce new subscribers but there was a lot so do whatever is new.

Step 9: Once Champion picks begin (start banning champions ect,) Switch to Scene "In-Game". See if game shows up in preview of StreamlabsOBS, interact with chat and talk about the game and what champ picks.bans (Shoutcasting's part)

Step 10: Game should launch automatically once they are done picking champions. Loading will take a while and remember stream delay and in game delay is a total of 5 minutes.

Should be everything you need, last thing is to switch to Stream BRB when we are taking our 10 minute break. Await new invite to lobby from one of the members.
